NEW MOBIUS 1S LENS C2 1440P WIDE-ANGLED ACTION CAMERA

Description

This is the latest Mobius 1 camera, called the Mobius 1S Lens C2 version. It shoots at an improved 1440p HD and has a 120 degree (approx) horizontal fleld of view.



This camera has the same sturdy case design, as the previous model and includes heat sink surfaces protruding through the case heat dissipation. The camera can be securely slid into a base piece, with a standard thread for a variety of mounting options. A 820mAh lipo battery will power the camera for up to 180 minutes.



Features and Specifications:
* Lens C2 – 135 degrees FOV (wide angle)
* Video Resolution: 1440p 30fps/60fps, 1080p 30fps/60fps; 720p 120fps
* Photo Resolution (JPEG): 2560*1440
* Codec Format: H.264/H.265 video codec, MOV file format
* Mode Switches: Video Mode 1, Video Mode 2, Photo Mode. (You can customize each mode to suit your application.)
* TV Out: PAL/NTSC
* Interface: Mini 5Pin USB (USB 2.0)
* Memory Card: MicroSD card slot – supports up to 256GB MicroSD (not included)
* LED Indicator Lights: Red, Yellow, Blue, Green
* Internal Lipo Battery: 820 mAh battery (Giving about 180 minutes of 1440p 30fps Full HD video)
* Power Input: Standard USB DC5V, with over voltage protection (5.6V-25V)
* Dimensions: Approx 61mm(L) x 35mm(W) x18mm(H)
* Net Weight: Approx 45 grams, including battery
* Multifunctional, you can use it as a mini DVR, a camera, a USB PC Camera (webcam), a removable USB drive
* Battery Connector: making it changeable by users who don’t like soldering.
* Lens Module Connector: making it possible to replace or upgrade it when new module’s available.
* Records full HD 1440P 30fps videos by default. You can set the parameters using the mSetup tool (V7.0.1.2 or above)
* Gravity-sensor, auto save and video lock whilst in loop mode, in case of an accident.
* Supports Auto Rotation of image, and horizontal and vertical mirroring



Recording times at different resolutions:
1440-60fps   135min
1440-30fps   180min
1080-30fps   210min
1080-60fps   145min

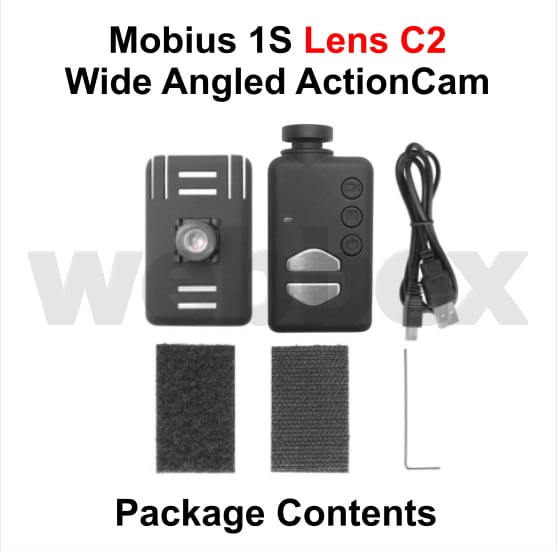

Package Contents:
1 x Mobius 1S Camera
1 x USB Cable

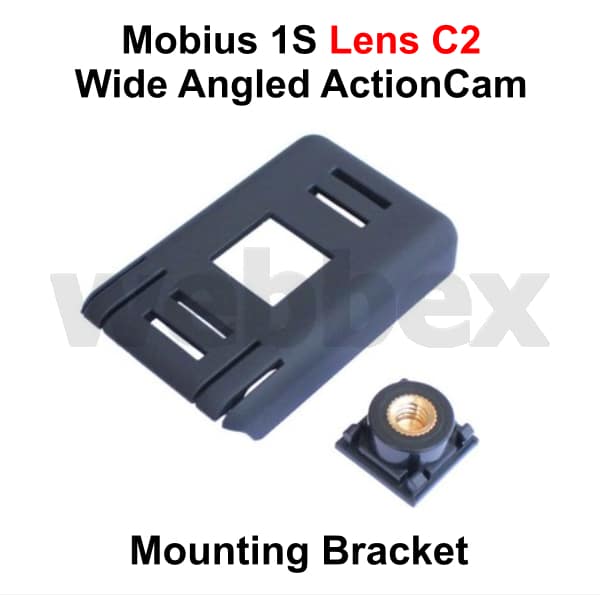

1 x Mounting Base
1 x Pair Velcro
1 x L Shape Small Hexagon Screwdriver (for changing or refocusing lens when needed)



More Information: http://www.minidvcameras.co.uk/links-and-information/



Manual, Software and Firmware: http://www.mytempfiles.info/mobius1s/index.htm
