MOBIUS MAXI 4K LENS C 110° CAMERA (CAPACITOR VERSION)

Description

From the makers of the Mobius range of cameras, comes the Mobius Maxi 4K Lens C Action Camera. This is the capacitor version of the camera and comes with the capacitor already in the camera.



This is the most advanced camera to date and it is powered by latest chip solution, records super-fine detail in has HD recording at multiple resolutions (see below), a wide dynamic range, natural colors, smooth exposure and great image quality.

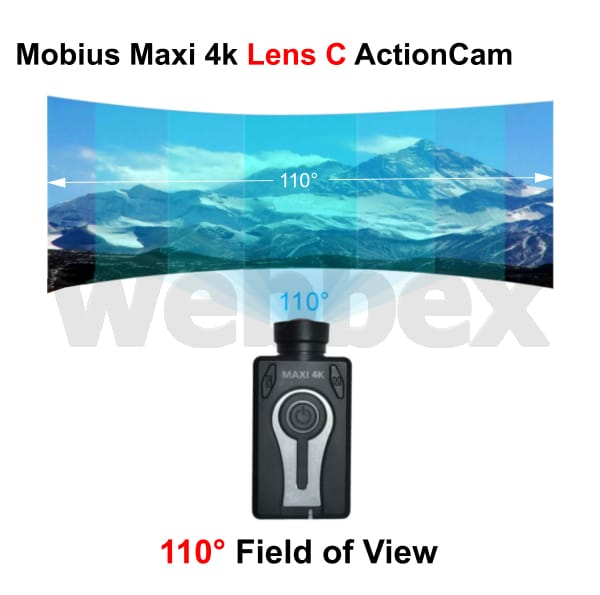

The Mobius Maxi 4K Lens C camera has a 110 degree FOV. The camera also has WiFi connectivity.



It has very low power consumption for a 4K camera, less heat dissipation, and is more reliable for continuous 4K videos recording. It has a type C USB Interface, giving easy connection with computers.



If your smart phone has a Type C USB port and supports USB OTG you can access the camera’s memory card.



It is multi-functional and can be used as a pocket camcorder, sports camera, dash cam, still camera, webcam, even as a removable storage device.



It is simple and easy to use and will work straight out of the box, but also has advanced user settings. The parameters can be changed by configuration of a TXT file, or by Isoprop’s powerful PC tool mSetup, (V6.0.0.0 or above). There is also a simple Windows GUI – mTool working for this Maxi 4K model.



Please note that at present, it is not possible to save settings to this camera, when it is powered down. They need to be set each time it is powered up. It is hoped that a future firmware will fix this issue. If this is a definite requirement, please consider the standard Mobius Maxi, which does not have this issue.



Features and Specification:
Model: Mobius Maxi 4K Camera Capacotor Version (MM4K)
Angle of View: Lens A: FOV 110° (Horizontal), wide angle, f/1.5
Video Resolution: 4K@30fps / 2.7K@30fps / 2.7K@60fps / 1440P@30fps / 1440P@60fps / 1080P@30fps / 1080P@60fps / 1080P@120fps / 720P@120fps / 720P@240fps
Video File Format: MP4 / MOV
Video Codec: H.264 / AVC
USB Interface: Type C (USB 2.0)
TV out (Video): PAL / NTSC
Memory Card: MicroSD memory card (not included in standard package) Supports FAT32 and exFAT, working with larger cards, 512GB tested. Note: 4K 30fps, 1080P 120fps and 720P 240fps requires U3 or above
LED Indicator Light: Red, Yellow, Blue, Green (can be turned off when needed)
Buzzer: Supported (beeper can be turned off when needed)
Microphone: Supported (Audio can be muted when needed).
Dimensions: Approx. 72mm x 35mm x 18.5mm (Lens diameter 20.5mm)
Net Weight: Approx. 50 grams only, with battery included.
Power Input: Standard USB DC +5V (Recommended Charger 2A or above)
Power: Internal Capacitor
Working Current: Max 412mA@ DC 5V, Max 490mA@DC 4.2V
Photo Mode: single, burst and time lapse modes; JPEG
Long Exposure Photo: Supported (1s; 2s; 5s; 8s; 30s, 1minute)
Motion Detection: Supported
Loop Recording: Supported
Auto Record: Supported, auto start when connecting to external USB power supply
G-Sensor: Supported: Auto save and lock Event video files; auto flip video.
Advanced IQ Settings: Supported. Can set Exposure, AE metering, Contrast, Sharpness, AWB
Video Image Stabilization: Supported (EIS)



Package Includes:
1 x Mobius Maxi 4K Camera with Capacitor installed

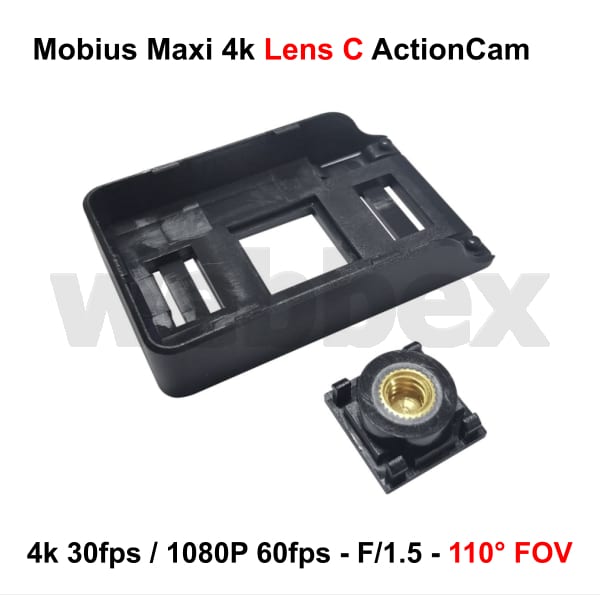

1 x Mounting Base
1 x Type C USB (data/charging) Cable
1 x Type C USB OTG Adapter
1 x Velcro Patch
1 x Quick Start Guide



Manual, Software and Firmware: http://www.mytempfiles.info/mobiusmaxi4k/index.html
