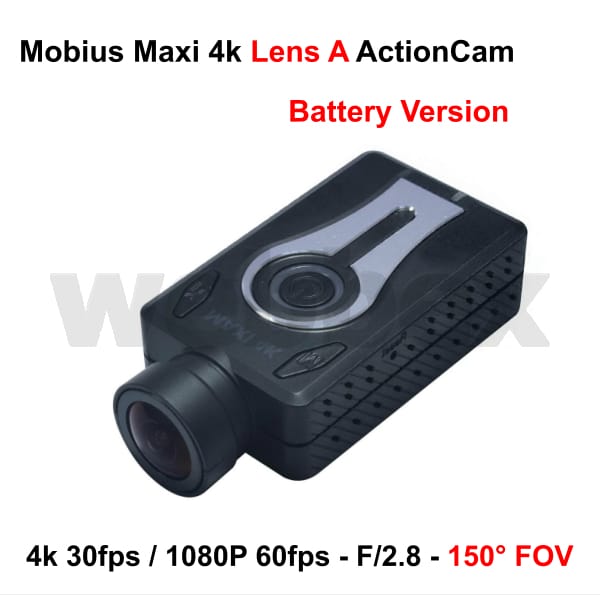

2ND GEN MOBIUS MAXI 4K LENS A 150° CAMERA (BATTERY VERSION)

Description

2nd Generation Mobius Maxi 4K Lens A Action Camera. This is the battery powered version of the camera. This version of the camera can easily be converted to powered by a capacitor version, as the battery is not hard-wired in.



This is the most advanced camera to date and it is powered by latest chip solution, records super-fine detail in has HD recording at multiple resolutions (see below), a wide dynamic range, natural colors, smooth exposure and great image quality.

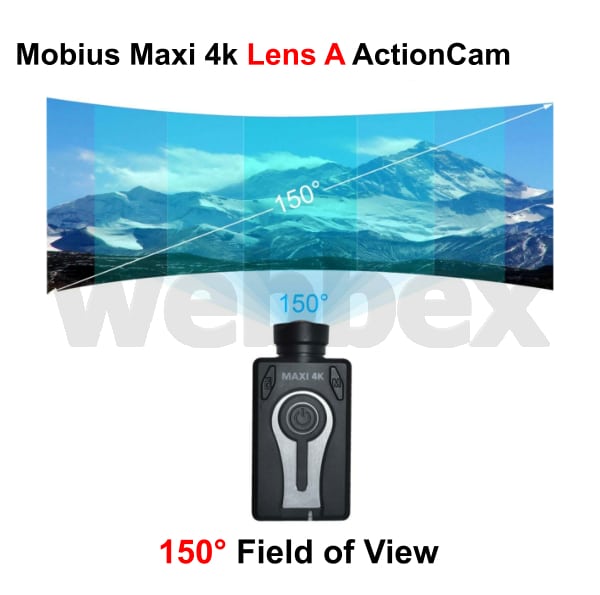

The Mobius Maxi 4K Lens A camera has a 150 degree FOV. The camera also has WiFi connectivity.



It has very low power consumption for a 4K camera, less heat dissipation, and is more reliable for continuous 4K videos recording. It has a type C USB Interface, giving easy connection with computers.



If your smart phone has a Type C USB port and supports USB OTG you can access the camera’s memory card.



It is multi-functional and can be used as a pocket camcorder, sports camera, dash cam, still camera, webcam, even as a removable storage device.



It is simple and easy to use and will work straight out of the box, but also has advanced user settings. The parameters can be changed by configuration of a TXT file, or by Isoprop’s powerful PC tool mSetup, (V6.0.0.0 or above). There is also a simple Windows GUI – mTool working for this Maxi 4K model.



Features and Specification:
Model: Mobius Maxi 4K Camera (MM4K)
Angle of View: Lens A: FOV 150° (Diagonal), wide angle, f/2.8
Video Resolution: 4K@30fps / 2.7K@30fps / 2.7K@60fps / 1440P@30fps / 1440P@60fps / 1080P@30fps / 1080P@60fps / 1080P@120fps / 720P@120fps / 720P@240fps
Video File Format: MP4 / MOV
Video Codec: H.264 / AVC
USB Interface: Type C (USB 2.0)
TV out (Video): PAL / NTSC
Memory Card: MicroSD memory card (not included in standard package) Supports FAT32 and exFAT, working with larger cards, 512GB tested. Note: 4K 30fps, 1080P 120fps and 720P 240fps requires U3 or above
LED Indicator Light: Red, Yellow, Blue, Green (can be turned off when needed)
Buzzer: Supported (beeper can be turned off when needed)
Microphone: Supported (Audio can be muted when needed).
Dimensions: Approx. 72mm x 35mm x 18.5mm (Lens diameter 20.5mm)
Net Weight: Approx. 50 grams only, with battery included.
Power Input: Standard USB DC +5V (Recommended Charger 2A or above)
Internal Battery: Rechargeable LiPo Battery (950mAh) (Fully charged battery can record up to 110 minutes of 4K 30fps videos and 155 minutes of 1080p 60fps videos)
Working Current: Max 412mA@ DC 5V, Max 490mA@DC 4.2V
Photo Mode: single, burst and time lapse modes; JPEG
Long Exposure Photo: Supported (1s; 2s; 5s; 8s; 30s, 1minute)
Motion Detection: Supported
Loop Recording: Supported
Auto Record: Supported, auto start when connecting to external USB power supply
G-Sensor: Supported: Auto save and lock Event video files; auto flip video.
Advanced IQ Settings: Supported. Can set Exposure, AE metering, Contrast, Sharpness, AWB
Video Image Stabilization: Supported (EIS)

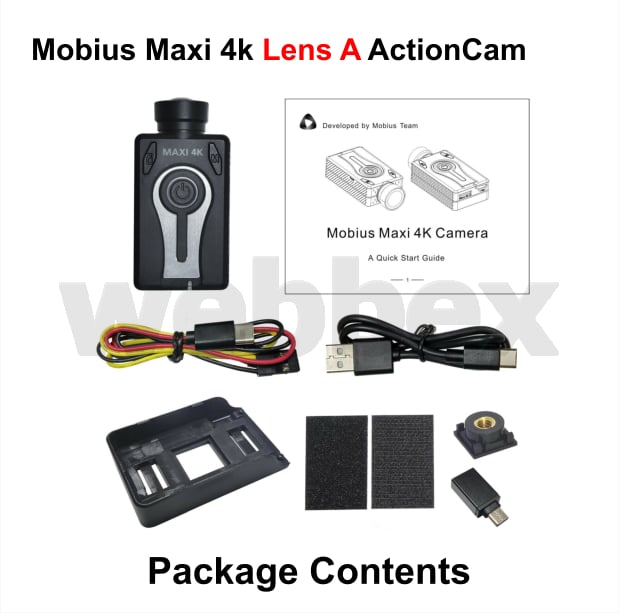

Package Includes:
1 x Mobius Maxi 4K Camera with Battery

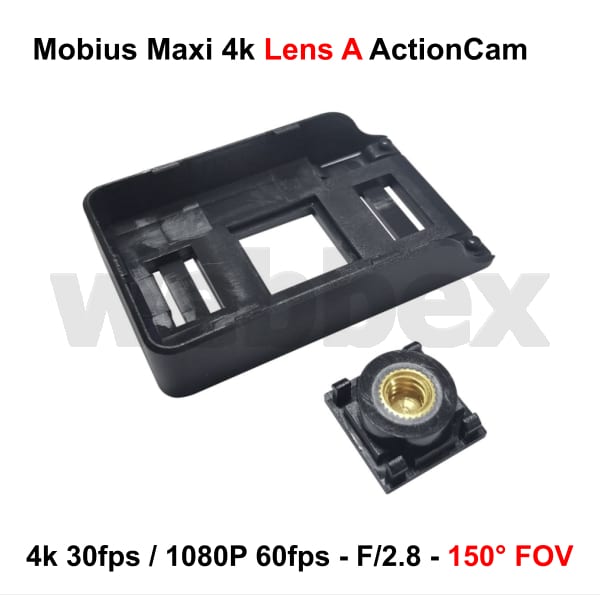

1 x Mounting Base
1 x Type C USB (data/charging) Cable
1 x Type C USB OTG Adapter
1 x Velcro Patch
1 x Quick Start Guide



Manual, Software and Firmware: http://www.mytempfiles.info/mobiusmaxi4k/index.html
